EC9500
BUILT IN STIRRER
APERA INSTRUMENT
DESCRIPTION :

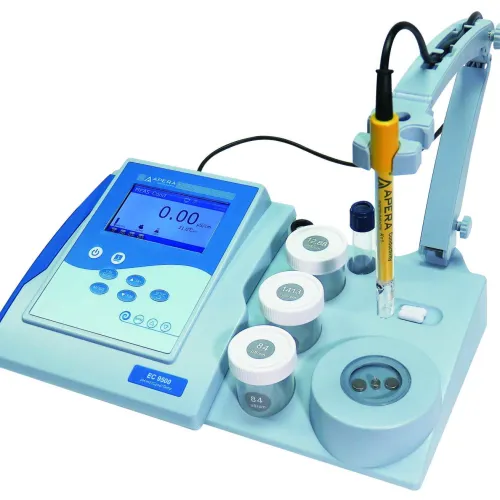

Apera EC9500 is a research-grade benchtop conductivity meter that is designed for laboratory professionals, offering long-term reliability in high-accuracy conductivity/TDS/salinity/resistivity measurement.
The meter is rich in features including comprehensive GLP data logging, data export to printer or PC, calibration password protection, buffer organizers, self-diagnosis, i-Guidance, and many more while retaining simplicity in use.
Instrument Features
An advanced yet intuitive user interface with plain language and graphic screen prompts that does not require tedious manual reading or training to operate. Multi-language supports English, German, Spanish, and Chinese.
Manual/Auto. data logger with 1000 groups of storage with comprehensive GLP data input including electrode ID, user ID, sample ID, company name, and calibration password for data protection. USB Data export to PC for further analysis or to a pin-type mini printer for instant report (sold separately).
i-Guide is always available through the “i” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibratComes with Apera TestBench that incorporates a flexible electrode holder, an intelligent magnetic stirrer, and buffer organizers altogether, streamlining the process of measurement and calibration.
Conductivity Measurement
The 2401T-F glass-body conductivity/temp. Electrode allows you to take highly accurate conductivity measurement in any sample solutions within a range of 0 to 200mS/cm at ±1% F.S accuracy.
1 to 4 points automatic calibration with a choice of 4 conductivity standards (84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm) or user-define standards.
One-tap switch from conductivity to TDS, salinity or resistivity.
Three salinity types for your option: general salinity, saltwater salinity, and NaCl.
Standard BNC conductivity connector, compatible with 2310T-F for high range measurement (up to 2000 mS/cm) and DJS-0.1-F for high purity water; RCA connector for a temperature probe, NTC 30KΩ thermistor
What's in the Kit?
EC9500 Meter with TestBench, USB keyboard, 2401T-F conductivity electrode, conductivity standards (1413µS, 12.88mS, 84µS), USB cable, power adapter (output: 9V, input: 120V), PC-Link software flash drive.
.
Conductivity
Range: 0.00 μ/cm to 2000 mS/cm
Resolution: 0.01/0.1/1μ/cm; 0.01/0.1/1 mS/cm
Accuracy: ±.5% F.S ± digit
Temp. Compensation Range: 0 to 50° (auto. or manual)
Cell Constant: 0.1/1/10 cm-1
Reference Temp.: 15 to 30° (adjustable)
Temp. Compensation Coefficient: 0.00 to 10.00% (adjustable)
Calibration Points: 1 to 4 points
Standard Series Options
Standard, CH, User-Define: TDS
Range: 0.00 mg/L to 1000 g/L
Resolution: 0.01/0.1/1mg/L; 0.01/0.1/1 g/L
Accuracy: ±.0% F.S ± digit
Temp. Compensation Range: 0 to 50° (auto. or manual)
TDS Factor: 0.40 to 1.00 (adjustable)
Salinity Range: 0.00 to 100 ppt
Resolution: 0.01/0.1 ppt
Accuracy: ±.0% F.S ± digit
Temp. Compensation Range: 0 to 50° (auto. or manual)
Salinity Type: Linear / NaCl / Saltwater
Resistivity Range: 0.00 Ω·m to 100MΩ·m
Resolution: 0.1/1 Ω·m; 0.01/0.1/1KΩ·m; 0.1 MΩ·m
Accuracy: ±.0% F.S ± digit
Temp. Compensation Range: 0 to 50° (auto. or manual)
Temperature Range: -10.0 to 110.0°; 14.0 to 230°
Resolution: 0.1°; 0.1/1°
Accuracy: ±.5°± digit
