D3024

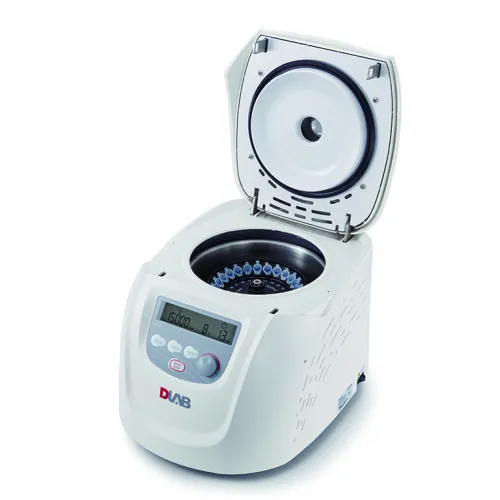

High Speed Micro Centrifuge
Centrifuges
DESCRIPTION :
High Speed Centrifuge
• D3024 High Speed Micro Centrifuges are suitable for frequently used capacities with high seperation strength and long durability
• High strength aluminum alloy rotor can be fully autoclaved with unlimited service life
• Max. RCF up to 21380xg/15000rpm
• Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy comsumption
• D3024 rotors have passed MCA test according to IEC/EN61010-2-20 including explosion proof and biosafe tests
• Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process preventing the risk of microbial contamination
Max. Speed 15000rpm(200-15000rpm), increment:10rpm
Max. RCF 21380×g, increment:10×g
Speed Accuracy ±20rpm
Rotor Capacity 5mL×18, 5mL culture tubesx12
0.2mL/0.5mL/1.5mL/ 2mL×24, 0.5mL×36, PCR8×4
Run Time 30sec-99min/Continuous
Driving Motor Brushless DC motor
Safety Devices Dual door interlock, Overspeed detection, Overtemperature detection, Automatic internal diagnosis
Power Single-phase, AC220V-240V, 50Hz/60Hz, 5A; AC110V-120V, 50Hz/60Hz, 8A
200W
Acceleration/Braking time 25s↑25s↓
Dimensions [D×W×H] 280×364×266mm
Weight 12kg
Additional Features Speed/RCF switch; Short-time run function; Sound-alert function
