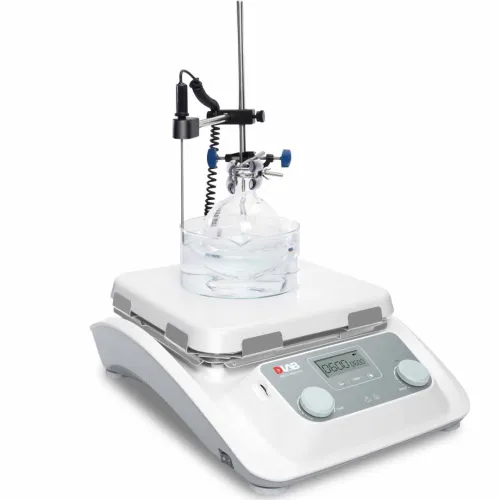

MS10H500Pro
10 Inch Magnetic Hotplate Stirrer

HotPlate and Magnetic Stirrers


DESCRIPTION :

Specifications
Work plate Dimension [W x D] 254x254mm（10inch）
Work plate material Glass ceramic
Motor type Brushless DC motor
Stirring positions 1
Max. stirring quantity, [H2O] 30L
Max. magnetic bar[length] 80mm
Speed range 100-1500rpm resolution±1rpm
Speed,time, Temperature display LCD
Timer function 1min-99h59min
Heating temperature range Room Temp.-500℃, increment1℃
Temperature control accuracy ±1℃ (<100℃)±1%(>100℃)
Overheating protection 540℃
Temperature display accuracy ±0.1℃
External temperature sensor PT1000(±0.2℃)
"Hot" warning 50℃
Data connector SD card
Protection class IP21
Power 1400W
Heating output 1350W
Voltage Frequency 100-120/200-240V 50/60Hz
Dimension [WxDxH] 328x424x138mm
Weight 7.18kg
Permissible ambient temperature and humidity 5-40℃，80%RH
