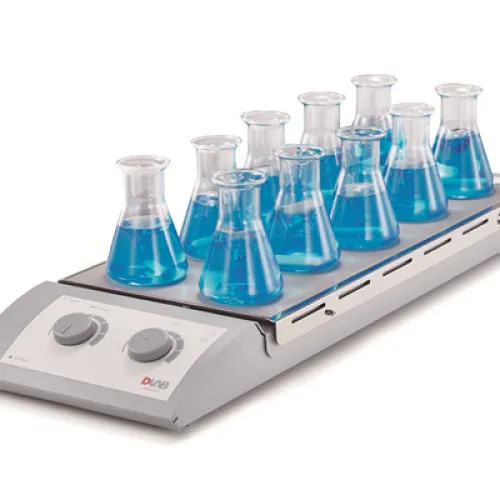

MS-H-S10

HotPlate and Magnetic Stirrers


DESCRIPTION :

Specifications MS-H-S10
Work plate Dimension 180x450mm
Work plate material Stainless steel with silicone
Motor type Brushless DC motor
Motor rating input 12W
Motor rating output 4W
Power 490W
Heating output 470W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 10
Max. stirring quantity[H2O] 0.4Lx10
Max. magnetic bar[length] 40mm
Speed range 0-1100rpm
Speed display scale
Temperature display scale
Heating temperature range Room temp.-120°C
Over heat Protection 140°C
Temperature display accuracy IP42
Dimension [W x D x H] 182×622×65mm
Weight 3.2kg
Permissible ambient temperature and humidity
5-40℃ 80%RH
