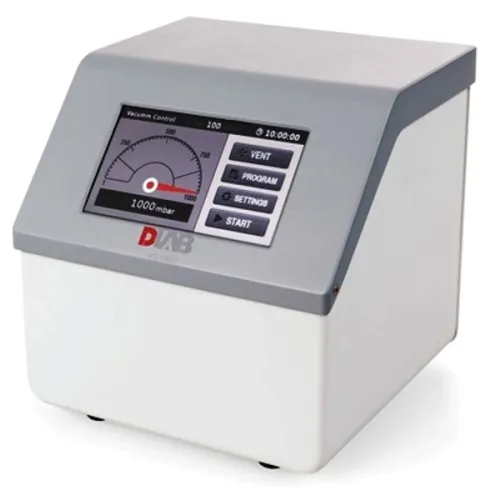

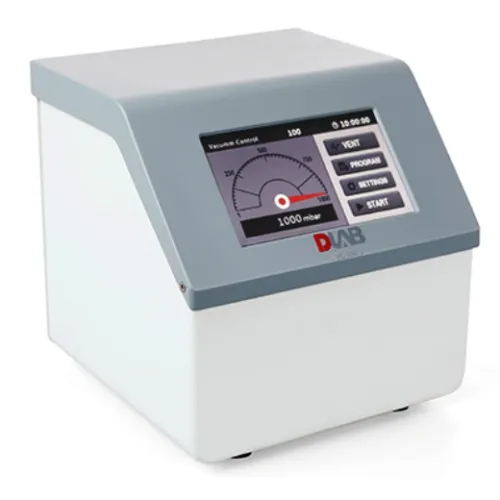

VC 100
Rotary Evaporators
DESCRIPTION :
• A wide range of measurement and control, 1-1,000mbar
• Two control modes of single-point control and programmed control available for choice as needed
• Can store up to 5 programs, each containing up to 5 segments of programming control
• A large-size TFT touch screen display control allows easy operation
• All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials and can effectively resist corrosion caused by organic solvents, water, acid and alkali
• A built-in vent valve can feed inert gas into system equipment
• One-stroke decompression allows easy installation and dismantling of vacuum system
• Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection. Can also be operated in the normally open statue of pump
Specifications VC100
Vacuum setting range 1-1000mbar
Vacuum measurement range 1-1000mbar
Control operation mode Single-point control mode,
Programmed control mode
Control program Can store up to 5 programs, each
containing 5-step control (capable to
set the degree of vacuum and time)
Setting method Touch screen setting
Display 5'' TFT
Sensor overload pressure 1,500mbar
Connector diameter 8mm
Materials in contact with vapor PTFE, PP, silicone and ceramics
power 600w
Overall dimensionsW×D×H 189×207×193mm
weight 4.0KG
Power supply 110—240V,50Hz/60Hz
Operating environment 10℃～40℃，≤80%RH
