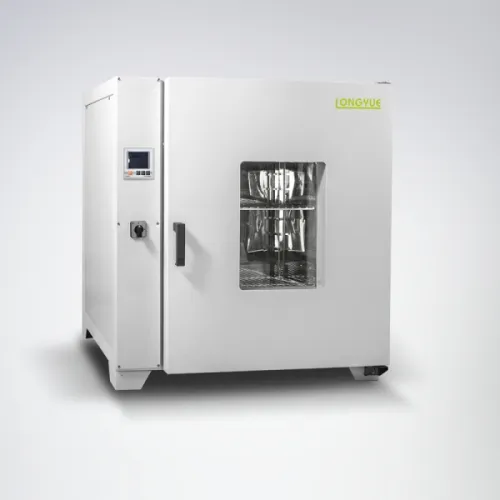

Drying Oven LDO Series

LDO300, LDO 400, LDO 500, LDO 600

LONGYUE


DESCRIPTION :

★High quality stainless steel chamber,safe and easy-to-clean.

★ Microprocessor controller with LCD display, accurate and reliable.

★ Equipped with multiple sets of heaters.

★ Equipped with leakage protection.

★ Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.

★ Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.

★ Convenient operation for air inlet,reasonable air duct structure,good temperature uniformity.
Technical Parameters:


1.Temp. Range:RT+10℃-300℃

2.Temp. Fluctuation:±1℃.

3.Temp.Resolution：0.1℃

4.Temp. Uniformity:≦Max. Temp.±3.5℃%.

5.Power Supply:220V,50HZ
Model

Package Size (L×W×H)cm

Exterior Size (L×W×H)cm

Chamber Size (L×W×H)cm

Power Rating
（W）

Shelf


Net/Gross （kg)
LDO-300

75×63×77

64×50×60

35×35×35

1300

2

35 / 55
LDO-400

85×66×86

73×53×69

45×40×45

2000

2

50 / 80

LDO-500

90×76×98

78×69×80

50×50×55

2500

2

75 / 110

LDO-600

100×86×110

88×73×95

60×60×70

3500

2

110 / 150
