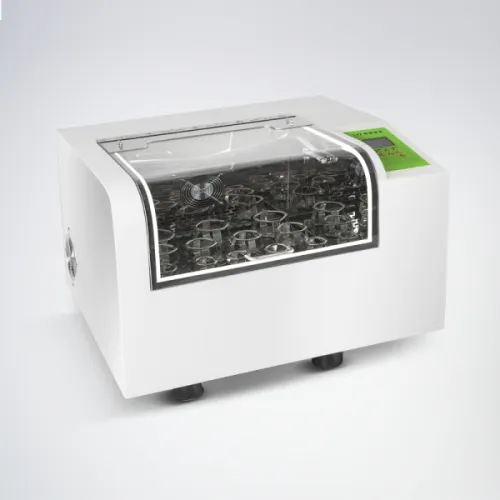

Shaking Incubator

LONGYUE


DESCRIPTION :


Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
Brushless DC motor, more stable and reliable.
Equipped with leakage protection.



Model

LYZ-103B

LYZ-100B

LYZ-200B
Shaking Speed (rpm)
20-300

Speed accuracy (rpm)
±1
Swing amplitude（mm）
Φ26

Standard configuration
100ml×9

50ml×4, 100ml×4 ,250ml×3, 500ml×3

50ml×5, 100ml×5 ,250ml×4, 500ml×3
Maximum capacity

50ml×12,100ml×9
50ml×20 or 100ml×16 or 250ml×12 or 500ml×9

100ml×20 or 250ml×16 or 500ml×12 or 1000ml×5 or 2000ml×4

Tray Size（mm）
295×253

400×370

450×410
Timing Range

1-9999min
Temperature Range（℃）

RT+5～60

RT+5～60

4～60(Cooling)

Temperature Accuracy （℃）
±0.1

Temperature uniformity（℃）
±1

Display
LCD

Tray Included
1

Exterior Size(W×D×H)mm
440×410×390

600×580×510

780×682×560
Package Size (W×D×H)mm

580×530×540

740×700×660

920×800×610
Net/Gross weight(kg)

31/41

72/88

100/125

Volume (W×D×H)mm
320×295×190

440×405×270

480×450×320

Power Rating
220W
320W
580W

Power Supply
AC 220～240V, 50～60Hz
