Conductivity/TDS/°C meter, handheld, pHenomenal CO 3100 H
Conductivity Meter
DESCRIPTION :
Conductivity/TDS/°C meter, handheld, pHenomenal CO 3100 H
This user friendly portable instrument with robust IP 67 rated housing provides high resolution and accuracy for precise measurements in field applications. Complete with waterproof USB output for connection to a computer. GLP compliant.
Large LCD graphic display with continuous LED backlight showing conductivity, TDS and temperature values simultaneously
Data logging function selectable between 1 minute and 1 hour
5000 data set memory capacity with automatic storing; additional 200 data set memory for manual storage
Automatic power shut-off: Adjustable from 10 minutes to 24 hours
Advanced self-test and diagnostics (electrode efficiency diagnostic, drift control); calibration symbol shows when re-calibration is required
Energy saving: 4× AA batteries for over 1000 operating hours

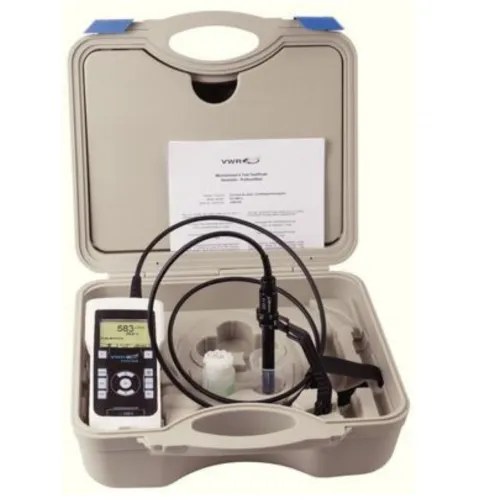

Ordering information: Ready to use portable set CO 3100 H includes instrument in robust plastic case, conductivity probe with built-in temperature sensor CO 11 (1,5 m cable), starter kit (standard and plastic beaker), stand and instruction manual (22 languages) on CD ROM.
Conductivity probes for low conductivities are available upon request. Please contact your local VWR sales office for further information.
Specifiction:
Model CO 3100 H
Conductivity - range 0,001 µS/cm - 1000 mS/cm
Conductivity - resolution Min. 0,001 µS/cm (depending on probe)
Conductivity - accuracy ±0,5% of measured value
Conductivity - cell constant Depending on probe
Conductivity - calibration 1 point
Resistivity - range 1,000 Ω/cm - 999,9 MΩ/cm
Resistivity - resolution 0,001 Ω/cm - 0,1 MΩ/cm
Resistivity - accuracy ±0,5% of measured value
Salinity - range 0,00 - 70 ppt
TDS - range 0 - 1999 mg/l / 2,00 - 19,99 g/l / 20,0 - 199,9 g/l
TDS - resolution 1 mg/l / 0,01 g/l / 0,1 g/l
TDS - accuracy ±1% of measured value ±1 digit
Temperature range (°C) −5...+105,0
Temperature resolution (°C) 0,1
Temperature accuracy (°C) ±0,2
Temperature compensation Automatic and manual: 0,000 - 10,000 %/K or without compensation
Display Graphic LCD display with LED backlight
Data logging - capacity 5000 data sets
Data logging - log function Selectable between 1 min and 1 h
Connections 8-pin connection for conductivity and temperature
Outputs Watertight USB connection (slave, bidirectional)
Power supply 4× AA batteries
Compliance IP 67 / GLP
