Multi-parameter meter (pH/conductivity/DO), handheld, pHenomenal MU 6100 H
Multi Parameter
DESCRIPTION :
Multi-parameter meter (pH/conductivity/DO), handheld, pHenomenal MU 6100 H
This user friendly portable instrument with robust IP 67 rated housing provides high resolution and accuracy for precise measurements of pH, mV, conductivity and oxygen in field applications (can only be used to measure any 2 of these at the same time). Complete with waterproof USB output for connection to a computer. GLP compliant.
Large LCD graphic display with continuous LED backlight showing the measured parameter and temperature value simultaneously
Data logging function selectable between 1 minute and 1 hour
5000 data set memory capacity with automatic storing; additional 200-point memory for manual storage
Automatic power shut-off: Adjustable from 10 minutes to 24 hours
Automatic buffer recognition of DIN and NIST buffers (1,68 / 4,00 / 6,86 / 9,18 / 12,54)
Three additional technical buffers at 25 °C (4,00 / 7,00 / 10,00) in memory
Advanced self-test and diagnostics (electrode efficiency diagnostic, drift control); calibration symbol shows when recalibration is required
Energy saving: 4× AA batteries for over 1000 operating hours

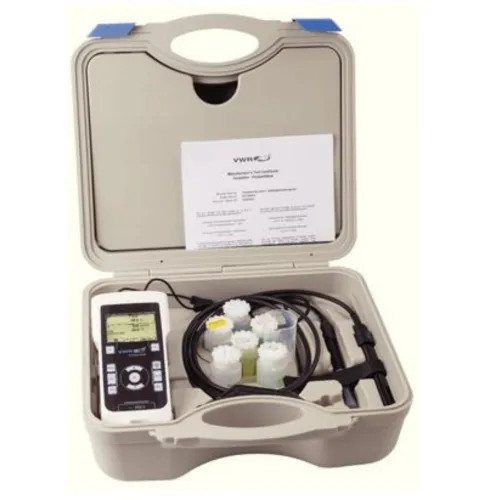

Ordering information: Ready to use set MU 6100 H S1 includes multi-parameter meter in robust plastic case, gel epoxy pH electrode 111 with built-in temperature sensor (1 m cable), starter kit (two pH buffers, one plastic beaker), conductivity probe CO 11 with built-in temperature sensor (1,5 m cable), stand and instruction manual (22 languages) on CD ROM. The set MU 6100 H S2 additionally includes the galvanic oxygen probe OXY 11-3 with built-in temperature sensor (3 m cable) and maintenance kit.
Conductivity probes for low conductivities are available upon request. Please contact your local VWR sales office for further information.
Specification:
Model MU 6100 H
pH - range −2,000...+20,000
pH - resolution 0,1 / 0,01 / 0,001 (selectable)
pH - accuracy ±0,005 + 1 digit
pH - calibration Up to 5 points
Automatic buffer recognition BDH Prolabo® TITRINORM® buffers at 25 °C: 4,00 / 6,98 / 9,94
NIST/DIN 19266 (1,68 / 4,00 / 6,86 / 9,18 / 12,54)
Technical buffers at 25 °C: 4,00 / 7,00 / 10,00
mV - range ±1200,0 / ±2500
mV - resolution 0,1 / 1
mV - accuracy ±0,3 / ±1
Conductivity - range 0,001 µS/cm - 1000 mS/cm
Conductivity - resolution 0,1 µS/cm
Conductivity - accuracy ±0,5% of measured value
Conductivity - cell constant (cm-1) Depending on probe
Conductivity - calibration 1 point
Resistivity - range 1 Ω/cm - 999 MΩ/cm
Resistivity - accuracy ±0,5% of measured value
Salinity - range 0,00 - 70 ppt
TDS - range 0 - 1999 mg/l / 2,00 - 19,99 g/l / 20,0 - 199,9 g/l
TDS - resolution 1 mg/l / 0,01 g/l / 0,1 g/l
DO - concentration (mg/l) 0,00 - 20,00; 0,0 - 90,0
DO - resolution (mg/l) 0,1%; 0,01
DO - % saturation 0,0 - 200,0; 0 - 600
DO - accuracy ±0,5% of value (between 5...30 °C)
DO - calibration Water saturated air
Temperature range (°C) Auto: −5,0...+105,0; Manual: −25...+130
Temperature resolution (°C) 0,1
Temperature accuracy (°C) ±0,2
Temperature compensation Automatic/manual
Data logging - capacity 5000 data sets
Data logging - log function Selectable between 1 s and 1 h (selectable intervals: 1 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 15 min, 30 min, 60 min)
Display LCD graphic display with LED backlight
Connections BNC for pH / banana for temperature / 8-pin for conductivity and DO
Outputs Waterproof USB connection (slave, bidirectional)
Power supply 4× AA batteries
Compliance IP 67 / GLP
