Oxygen meter, handheld, pHenomenal OX 4100 H
Oxygen Meter
DESCRIPTION :
Oxygen meter, handheld, pHenomenal OX 4100 H
This user friendly portable instrument with robust IP 67 rated housing provides high resolution and accuracy for precise measurements in field applications. Complete with waterproof USB output for connection to a computer. GLP compliant.
Large LCD graphic display with continuous LED backlight showing both oxygen and temperature values simultaneously
Data logging function selectable between 1 minute and 1 hour
5000 data set memory capacity with automatic storing; additional 200 data set memory for manual storage
Automatic power shut-off: Adjustable from 10 minutes to 24 hours
Advanced self-test and diagnostics (electrode efficiency diagnostic, drift control); calibration symbol shows when re-calibration is required
Energy saving: 4× AA batteries for over 1000 operating hours

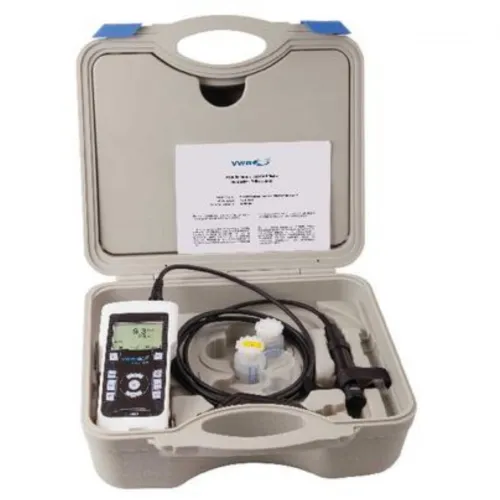

Ordering information: Ready to use portable oxygen set OX 4100 H includes instrument in robust plastic case, galvanic oxygen probe OXY11-3 with built-in temperature sensor, 3 m cable and stand, maintenance kit and instruction manual (22 languages) on CD ROM.
Specification:
Model OX 4100 H
DO - concentration (mg/l) 0,00 - 20,00 / 0 - 90,0 (according to the sensor)
DO - resolution (mg/l) 0,01 / 0,1%
DO - accuracy ±0,5% (between +5 and +30 °C)
DO - calibration Water saturated air
DO - % saturation 0,0 - 200,0 / 0 - 600 (according to the sensor)
DO - barometric pressure range 500 - 1100 mbar
DO - salinity compensation (g/l) Manual input
DO - salinity factor (ppt) 0,0 - 35
Temperature range (°C) 0,0...+100,0
Temperature resolution (°C) 0,1
Temperature accuracy (°C) ±0,2
Temperature compensation 0 to +50 °C (automatic)
Data logging - capacity 5000 points
Data logging - log function Selectable between 1 min and 1 h
Display Graphic LCD display with LED backlight
Connections 8-pin connection for oxygen and temperature
Outputs Watertight USB connection (slave, bidirectional)
Compliance IP 67 / GLP
